Send Receive SMS & Call with SIM800L GSM Module & Arduino



Whether you want to listen to what happens in your house that’s miles away from you or activate sprinkler system in your garden just with a silent call; Then SIM800L GSM/GPRS module serves as a solid launching point for you to get you started with IoT!

SIM800L GSM/GPRS module is a miniature GSM modem, which can be integrated into a great number of IoT projects. You can use this module to accomplish almost anything a normal cell phone can; SMS text messages, Make or receive phone calls, connecting to internet through GPRS, TCP/IP, and more! To top it off, the module supports quad-band GSM/GPRS network, meaning it works pretty much anywhere in the world.

Hardware Overview of SIM800L GSM/GPRS module

At the heart of the module is a SIM800L GSM cellular chip from SimCom. The operating voltage of the chip is from 3.4V to 4.4V, which makes it an ideal candidate for direct LiPo battery supply. This makes it a good choice for embedding into projects without a lot of space.

All the necessary data pins of SIM800L GSM chip are broken out to a 0.1″ pitch headers. This includes pins required for communication with a microcontroller over UART. The module supports baud rate from 1200bps to 115200bps with Auto-Baud detection.

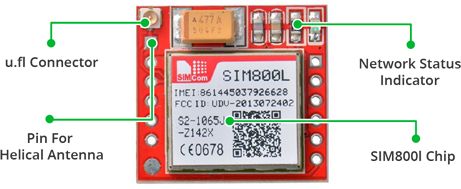

The module needs an external antenna to connect to a network. The module usually comes with a Helical Antenna and solders directly to NET pin on PCB. The board also has a U.FL connector facility in case you want to keep the antenna away from the board.

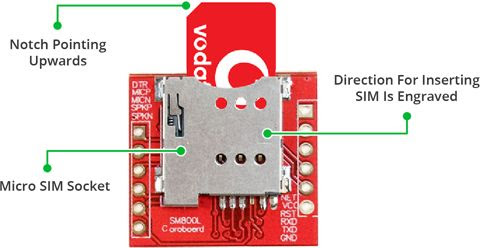

There’s a SIM socket on the back! Any activated, 2G micro SIM card would work perfectly. Correct direction for inserting SIM card is normally engraved on the surface of the SIM socket.

This module measures only 1 inch² but packs a surprising amount of features into its little frame. Some of them are listed below:

• Supports Quad-band: GSM850, EGSM900, DCS1800 and PCS1900
• Connect onto any global GSM network with any 2G SIM
• Make and receive voice calls using an external 8Ω speaker & electret microphone
• Send and receive SMS messages
• Send and receive GPRS data (TCP/IP, HTTP, etc.)
• Scan and receive FM radio broadcasts
• Transmit Power:
  • Class 4 (2W) for GSM850
  • Class 1 (1W) for DCS1800
• Serial-based AT Command Set
• FL connectors for cell antennae
• Accepts Micro SIM Card

LED Status Indicators

There is an LED on the top right side of the SIM800L Cellular Module which indicates the status of your cellular network. It’ll blink at various rates to show what state it’s in:

Blink every 1s                                        Blink every 2s                 Blink every 3s

The module is running                         The GPRS data         The module has made

but hasn’t made connection to            connection you           contact with the cellular

 the cellular network yet.                     requested is active.       network & can send/receive

                                                                                                         voice and SMS.

Selecting Antenna

An antenna is required to use the module for any kind of voice or data communications as well as some SIM commands. So, selecting an antenna could be a crucial thing. There are two ways you can add an antenna to your SIM800L module.

The first one is a Helical GSM antenna which usually comes with the module and solders directly to NET pin on PCB. This antenna is very useful for projects that need to save space but struggles in getting connectivity especially if your project is indoors.

The second one is any 3dBi GSM antenna along with a U.FL to SMA adapter which can be obtained online for less than $3. You can snap-fit this antenna to small u.fl connector located on the top-left corner of the module. This type of antenna has a better performance and allows putting your module inside a metal case – as long the antenna is outside.

Supplying Power for SIM800L module

One of the most important parts of getting the SIM800L module working is supplying it with enough power.

Depending on which state it’s in, the SIM800L can be a relatively power-hungry device. The maximum current draw of the module is around 2A during transmission burst. It usually won’t pull that much, but may require around 216mA during phone calls or 80mA during network transmissions. This chart from the datasheet summarizes what you may expect:

Modes	Frequency	Current Consumption
Power down		60 uA
Sleep mode		1 mA
Stand by		18 mA
Call	GSM850	199 mA
	EGSM900	216 mA
	DCS1800	146 mA
	PCS1900	131 mA
GPRS		453 mA
Transmission burst		2 A

Since SIM800L module doesn’t come with onboard voltage regulator, an external power supply adjusted to voltage between 3.4V to 4.4V (Ideal 4.1V) is required. The power supply should also be able to source 2A of surge current, otherwise the module will keep shutting down. Here are some options you can consider to correctly power your GSM module.

3.7v Li-Po Battery (Recommended)

One of the cool things about Li-Po batteries is that their voltage is generally in the range of 3.7V – 4.2V, perfect for SIM800L Module. Any 1200mAh or larger sized Lithium ion/polymer battery is best since it can provide the correct voltage range even during 2 Amp spikes.

DC-DC Buck Converter

Any 2A-rated DC-DC buck converter like LM2596 would work. These are much more efficient than a liner voltage regulator like LM317 or LM338.
